API Security: A Comprehensive Guide for Developers

Introduction

APIs (Application Programming Interfaces) are the backbone of software development, enabling applications to communicate and share data efficiently. However, this increased interconnectivity also presents significant security challenges. With cyber threats evolving rapidly, securing APIs is not just a best practice but a necessity.

We’ve noticed that developers in our Authorization Slack community (Which you are more than welcome to join!) often struggle to implement security best practices for their APIs. So, we created this guide, which delves into the key strategies and practices for securing APIs, providing you with the knowledge to safeguard your applications effectively. Let’s begin -

Implementing Robust Authentication Mechanisms

Authentication is the process of verifying the identity of a user or system. It's a crucial step in securing APIs, as it ensures that only authorized entities can access sensitive data or functionalities. A common and effective way to implement authentication in APIs is through the use of tokens.

One popular token-based authentication method is JSON Web Tokens (JWT). JWTs are compact, URL-safe tokens that contain a JSON payload with user identity and claims. They are signed using a secret key or a public/private key pair, which ensures their integrity and authenticity.

Here’s an example of how to create and sign a JWT token in a Node.js application using the jsonwebtoken package:

const jwt = require('jsonwebtoken');

function generateAccessToken(user) {
  return jwt.sign(user, process.env.ACCESS_TOKEN_SECRET, { expiresIn: '1800s' });
}

In this code snippet, we define a function generateAccessToken that generates a JWT for a given user. The token is signed with a secret key stored in an environment variable and has an expiration time of 30 minutes.

Enforcing Access Control with API Keys and Policy-Based Authorization

While API keys are essential for identifying and authenticating users or services accessing an API, relying solely on OAuth scopes for detailed authorization control can lead to some issues. OAuth scopes are primarily designed to specify the level of access an application has to a user's data rather than handling granular authorization within the application. Misusing OAuth scopes for in-depth authorization decisions can lead to issues like over-permissioning, scalability challenges, and an inability to adapt to context-specific access needs.

A better approach is to combine OAuth scopes with a policy-based authorization model. This method involves using policy-as-code to define dynamic and flexible authorization rules. By incorporating models like Role-Based Access Control (RBAC), Attribute-Based Access Control (ABAC), or Relationship-Based Access Control (ReBAC), you can create a more adaptable and scalable authorization system. This system can interpret OAuth scopes within the context of detailed and context-sensitive policies, ensuring that access control is both secure and efficient.

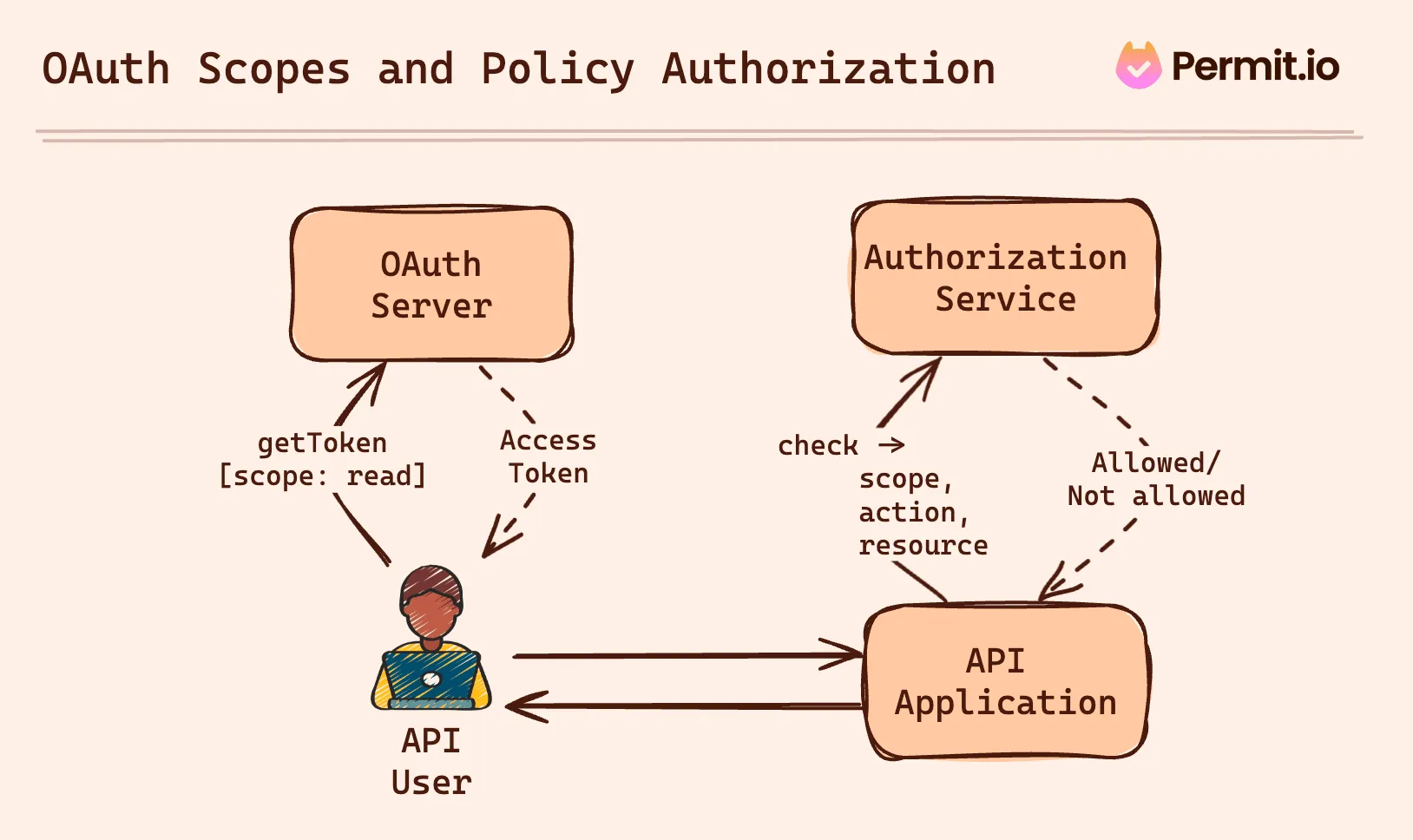

The following diagram shows how applications can incorporate OAuth-based scopes with Policy-Based authorization service by Permit.io

You can read more about how to use OAuth scopes for authorization here.

Leveraging OAuth2 and OpenID Connect for SSO

OAuth2 with OpenID Connect provides an effective solution for applications requiring Single Sign-On (SSO) capabilities. OAuth2 is an e2e auth framework that allows applications to obtain limited access to user accounts on other services. OpenID Connect, built on top of OAuth2, adds an identity layer, enabling client applications to verify the identity of an end-user and obtain basic profile information.

When implementing OAuth, it’s vital to ensure that the redirect_uri is validated against a list of allowed URIs to prevent redirection attacks. Additionally, using the state parameter in OAuth2 is a must for protecting against CSRF (Cross-Site Request Forgery) attacks.

An example of an OAuth2 flow involves the following steps:

1. The client application redirects the user to the authentication server (e.g., Google) with a request for specific permissions.
2. The user authenticates with the authentication server and grants the requested permissions.
3. The authentication server redirects the user back to the client application with an authorization code.
4. The client application exchanges the authorization code for an access token.

Here's a sample authorization URL for initiating an OAuth2 flow with Google’s authorization server:

<https://accounts.google.com/o/oauth2/v2/auth>?
 response_type=code&
 client_id=YOUR_CLIENT_ID&
 redirect_uri=YOUR_REDIRECT_URI&
 scope=openid%20email&
 state=SECURE_RANDOM_STATE

This URL initiates an OAuth2 authorization request with Google, asking for the user's email address and OpenID. The state parameter contains a secure random value to mitigate CSRF attacks.

Emphasizing the Importance of TLS/SSL

Transport Layer Security (TLS), formerly known as Secure Sockets Layer (SSL), is a cornerstone of secure data transmission. Implementing TLS ensures that the data exchanged between the client and server is encrypted, making it unreadable to eavesdroppers. This is particularly crucial for APIs as they often transmit sensitive data, including personal information and authentication credentials.

To implement TLS, a server requires an SSL certificate from a trusted certificate authority (CA). This process involves generating a public and private key pair and submitting a certificate signing request (CSR) to a CA. The CA then validates the server's identity and issues a certificate installed on the server. Cloud providers like AWS, Azure, or Google Cloud offer streamlined processes for obtaining and managing SSL certificates, significantly simplifying the TLS implementation.

A typical example of using TLS is an API endpoint accessed via HTTPS. For instance, a REST API endpoint for a banking application would look like https://api.bank.com/transactions, ensuring that all data transmitted is encrypted.

Utilizing Rate Limiting and Throttling

Rate limiting and throttling are essential techniques to protect APIs from abuse and DoS (Denial of Service) attacks. Rate limiting restricts the number of requests a user can make in a given time frame, while throttling controls the pace of incoming requests.

Implementing rate limiting can be done at various levels, including the application layer, using middleware, or through cloud services like AWS API Gateway. A common approach is to use a sliding window algorithm, which tracks API requests in a fixed time window and limits the number of allowed requests.

Here’s an example of a simple rate limiting middleware in Express.js:

const rateLimit = require("express-rate-limit");

const apiLimiter = rateLimit({
  windowMs: 15 * 60 * 1000, // 15 minutes
  max: 100, // limit each IP to 100 requests per windowMs
});

// Apply to all requests
app.use("/api/", apiLimiter);

This middleware limits each IP address to 100 requests every 15 minutes for routes starting with /api/.

Implementing Input Validation and Sanitization

Input validation and sanitization are critical for preventing injection attacks such as SQL Injection, XSS (Cross-Site Scripting), and other forms of input manipulation. Validation ensures that the incoming data conforms to the expected format, while sanitization cleanses the data of any malicious content.

For example, an API accepting user input for database queries should validate the data type, length, format, and range. Sanitization involves stripping out or encoding potentially dangerous characters like <, >, and &.

Here's an example of input validation in a Node.js API using the express-validator package:

const { check, validationResult } = require("express-validator");

app.post('/api/user', [
  check('username').isAlphanumeric(),
  check('email').isEmail(),
  check('password').isLength({ min: 5 })
], (req, res) => {
  const errors = validationResult(req);
  if (!errors.isEmpty()) {
    return res.status(400).json({ errors: errors.array() });
  }
  // Process the request...
});

In this example, we validate that the username is alphanumeric, the email is a valid email address, and the password is at least five characters long.

Leveraging Static Analysis of Infrastructure as Code (IaC) in API Security

Infrastructure as Code (IaC) has become a pivotal aspect of API development, offering a declarative approach to provisioning and managing infrastructure. With IaC, API infrastructure - including servers, networks, and other components - is defined and managed through code rather than manual processes. This approach not only streamlines deployment and scaling but also serves as a critical resource for implementing security measures. By treating infrastructure setup as code, it becomes possible to apply the same rigor of security and review as to the application code itself.

One of the significant benefits of IaC is its compatibility with static analysis tools. These tools analyze the infrastructure code without executing it, identifying potential security vulnerabilities, misconfigurations, and compliance issues. This preemptive analysis ensures that security is ingrained in the infrastructure from the very beginning, reducing the likelihood of vulnerabilities in the production environment. Static analysis of IaC can reveal issues like poorly configured firewalls, unintended resource exposures, or inadequate data encryption practices, which are critical for API security.

*KICS* is an example of a tool that excels in performing security checks on IaC. KICS can scan various IaC formats, including OpenAPI specifications for APIs, Serverless Framework configurations, AWS CloudFormation templates, and Terraform scripts. By integrating KICS into the development pipeline, developers can ensure that their API’s infrastructure is continuously evaluated against a comprehensive security checklist. This helps in maintaining robust security standards not just in the application code but also in the very foundation on which the APIs operate.

Implementing a Continuous Security Checklist in the SDLC

A continuous security checklist is crucial for ensuring API integrity. Referencing resources like the API Security Checklist on GitHub, such a list should cover key areas: authentication best practices (like using JWTs or OAuth), proper management of access controls, regular validation and sanitization of inputs, diligent management of dependencies and their vulnerabilities, and employing rate limiting to mitigate DoS attacks.

Maintaining a manual security checklist can be challenging due to the rapid evolution of threats and the complexity of modern applications. Integrating this checklist into the continuous Software Development Lifecycle (SDLC) ensures that security is a continuous process rather than a one-time event. This integration allows for consistent, automated checks and balances throughout the development process, reducing human error and ensuring no critical steps are overlooked.

Incorporating a chain of security tools in the CI/CD pipeline is a practical approach to enforce the security checklist. This can include automated vulnerability scans with tools like OWASP ZAP, static code analysis with SonarQube, dependency checks using tools like Snyk, and automated testing for known security flaws. By embedding these tools into the pipeline, each code commit is automatically scanned, ensuring continuous compliance with the security checklist and maintaining the integrity of the API.

Building Secure Apps Together

Securing APIs is a multifaceted challenge that requires a combination of strategies. By implementing TLS/SSL, robust authentication mechanisms, access control, rate limiting, and input validation, developers can significantly enhance the security of their APIs. Remember, the goal is not only to protect data but also to ensure the reliability and integrity of your application.

If you find yourself struggling with API security, especially with designing access control, you are more than welcome to join our community, where thousands of developers are working on these features and would love to answer any questions you might have 👉 https://io.permit.io/blog-slack ❤️
